DS9208

DS9208

ขอใบเสนอราคา
รหัสสินค้า : DS9208
ราคา : 9,500 บาท

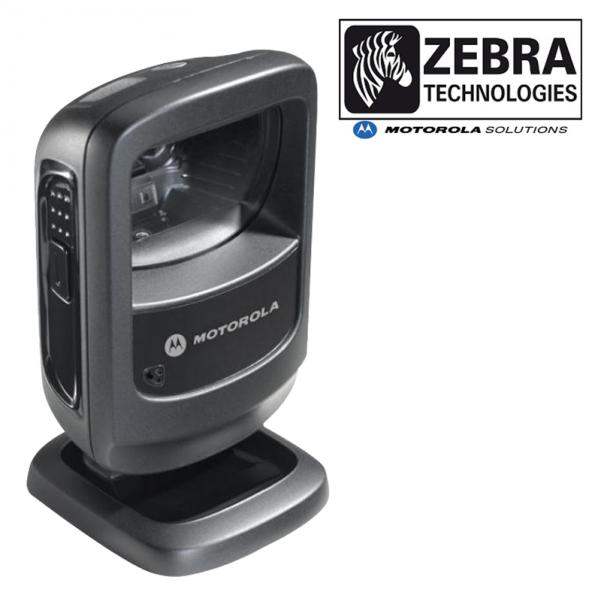

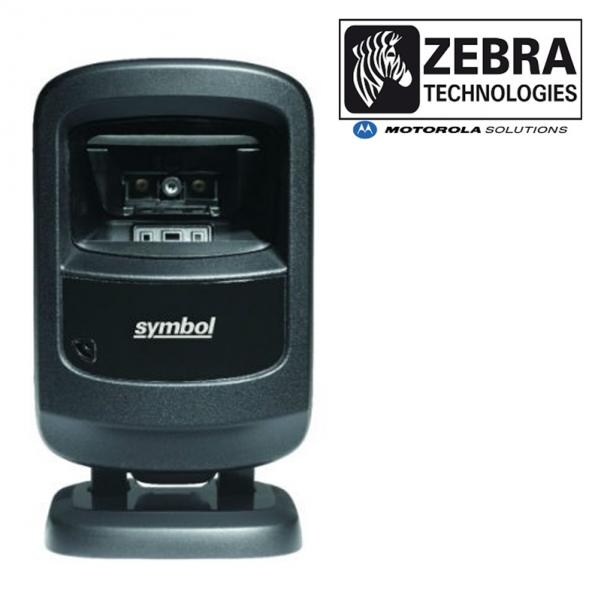

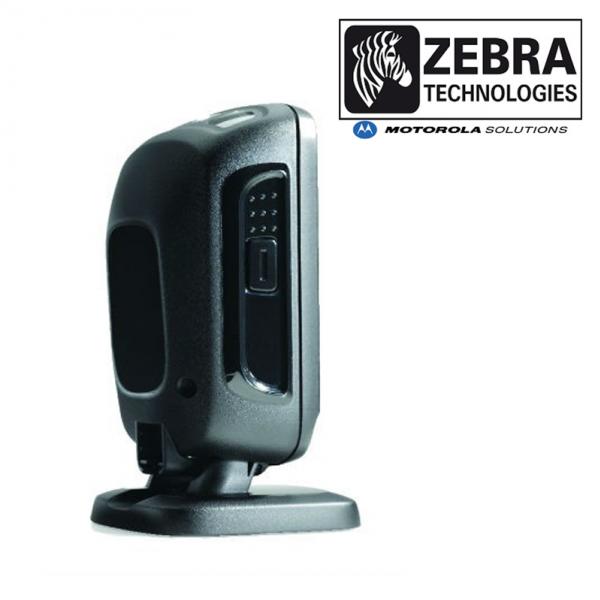

เครื่องอ่านบาร์โค้ด ZEBRA DS-9208 OMNIDIRECTIONAL HANDS-FREE PRESENTATION IMAGER
Light Source Aiming pattern: single dot, 625nm LED
Illumination: 630nm LEDs
Imager Field of View 46° Horizontal x 29.5° Vertical

รายละเอียด:
SPECIFICATIONS CHART
PHYSICAL CHARACTERISTICS
Dimensions 5.512 in. H x 3.232 in. W x 3.150 in. D
14.0 cm H x 8.21 cm W x 8.0 cm D
Weight 9.5 oz./269 g
Voltage and Current Idle: 5 ± 10% VDC @ 150ma average
Scanning: 5 ± 10% VDC @ 230ma average
Color Midnight Black, Alpine White
PERFORMANCE CHARACTERISTICS
Light Source Aiming pattern: single dot, 625nm LED
Illumination: 630nm LEDs
Scanner Field of View 46° Horizontal x 29.5° Vertical
Roll
Pitch
Yaw
360°
± 65°
± 60°
Print Contrast 25% minimum reflective difference
Swipe Speed
(Vertical Read Rate)
Up to 90 in./2.3 m per second
SYMBOLOGY DECODE CAPABILITY
1-D UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/
EAN-13/JAN-8/JAN-13 plus supplementals,
ISBN (Bookland), ISSN, Coupon Code),
Code 39 (Standard, Full ASCII, Trioptic,
Code 32 (Italian Pharmacode), Code 128
(Standard, Full ASCII, UCC/EAN-128,
ISBT-128 Concatenated), Code 93, Codabar/
NW7, 2 of 5 (Interleaved 2 of 5, Discrete
2 of 5, IATA, Chinese 2 of 5, Matrix 2 of
5, Code 11), MSI Plessey, GS1 DataBar
(Omnidirectional, Truncated, Stacked,
Stacked Omnidirectional, Limited,
Expanded, Expanded Stacked)
Nominal Working Range
Code 39 – 5 mil: 0 – 4.5 in. (0 – 11.4 cm)
UPC/EAN – 10 mil (80%): 0 – 8.5 in. (0 – 21.6 cm)
UPC/EAN – 13 mil (100%): 0 – 10.5 in. (0 – 26.7 cm)
